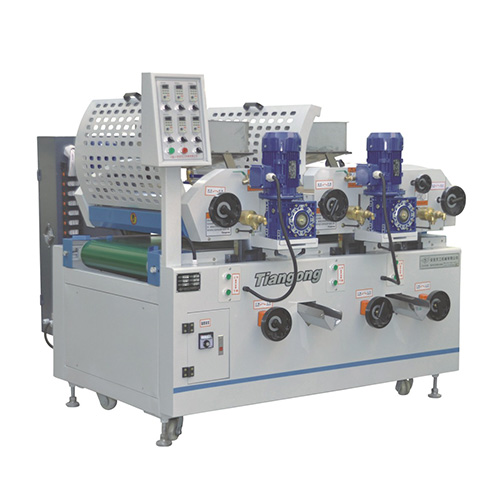

Heavy Duty Putty Coating Machine

Product Details:

Main features:

1. Used for filling plates or MDF with Water-based or UV light curing filler.

2. Can achieve a smooth effect by filling the board pores, scraping away the excess lacquer and recycling it. so as to enhance the production efficiency greatly.

3. Each uniform wheel, tire, conveying belt and fill&scrape wheel was controlled by an independent Converter Motor, which raise the coating effect greatly. Floating fill system can adapt to subtle thickness differences of the workpiece, The constant down pressure of fill and scrape wheel further to improve the filled effect of plates.

4. Conveying belt can resistant various sollvents coatings and to prevent slipping phenomenon.

600#

Effective processing width 600mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Rubber wheel power 1.5kw

Electric light wheel power 0.75kw

Delivery power 0.75kw

Outlook size L*W*H 1800*1850*1500mm

1000#

Effective processing width 1000mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Rubber wheel power 1.5kw

Electric light wheel power 0.75kw

Delivery power 0.75kw

Outlook size L*W*H 1800*2300*1500mm

1300#

Effective processing width 1300mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Rubber wheel power 1.5kw

Electric light wheel power 0.75kw

Delivery power 0.75kw

Outlook size L*W*H 1800*2600*1500mm
