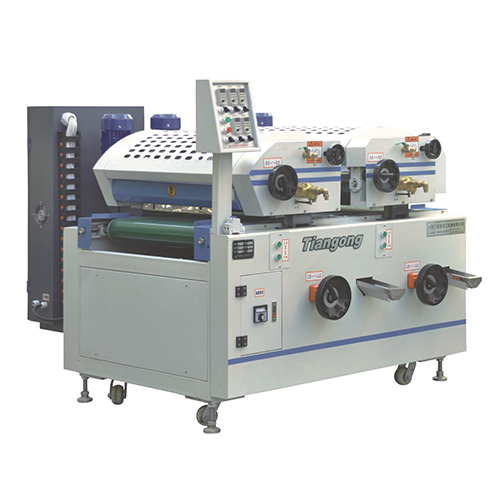

Double Roller Coating Machine

Product Details:

Main features:

1. Coating is evenly by the use of frequency conversion, saving time and effort.

2. Equipped with two sets UV coating rollers, It can be used simultaneously or separately.

3. Easy to replace the UV coating rollers by unscrewing the set screw of it, saving time and effort.

4. UV lacquer can be reclaimed quickly and easily;

5. Feeding speed can be adjusted with the coating speed, near synchronous line speed.

6. Suitable for coating wood, plywood, plastic, windows, rubber sheet and other square board, rectangle board, etc.

600#

Effective processing width 600mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Rubber wheel power 0.75kw

Delivery power 0.75kw

Outlook size L*W*H 1600*2000*1550mm

1000#

Effective processing width 1000mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Rubber wheel power 1.5kw

Delivery power 1.5kw

Outlook size L*W*H 1600*2450*1550mm

1300#

Effective processing width 1300mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Rubber wheel power 1.5kw

Delivery power 1.5kw

Outlook size L*W*H 1600*2750*1550mm
