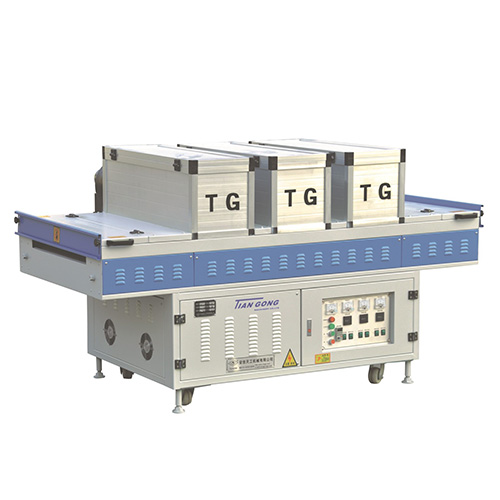

New Style Three-lamp UV Drywer

Product Details:

Main features:

1. Widely used for instant drying of UV coatings on the general flat articles.

2. The inside of lamp house is well -ventilated which prolongs the service life of UV lamp, transformers and capacitors effectively.

3. Anti-ultraviolet shielding plate was installed at the inlet, outlet and side place to isolate the ultraviolet radiation leakage effectively.

4. Professional conveying device prolongs the service life of the conveying belt and ensure the brightness of the lacquered workpiece.

5. The operating procedures and UV operation status is displayed on the screen directly with integrated HMI operator panels, It's easy to operate and monitor the complete UV system work.

600#

Effective processing width 600mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Light tube power 6kw*3

Delivery power 0.4kw

Outlook size L*W*H 1800*1450*1500mm

1000#

Effective processing width 1000mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Light tube power 8kw*3

Delivery power 0.75kw

Outlook size L*W*H 1800*1850*1600mm

1300#

Effective processing width 1000mm

Effective processing thickness 3-80mm

Min process length 300mm

Delivery speed 5-20m/min

Light tube power 9.7kw*3

Delivery power 0.75kw

Outlook size L*W*H 1800*2150*1600mm
